Acorn 120 Perch Specifications

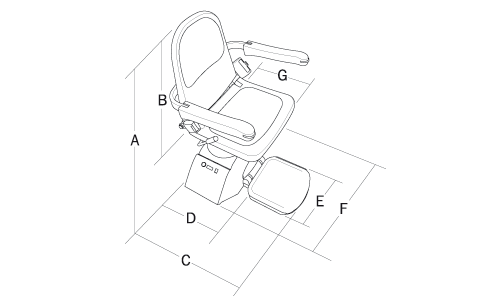

Dimensions mm inch
A Overall height (from floor) 1020 40
B Height of seat 495 19.5
C Overall depth (from wall) 585 23
D Overall depth (when folded) 325 13
E Width of footrest 305 12
F Overall width 560 22
G Depth of seat 410 16


Specifications
Motor power 0.5 hp
Motor output speed 22 rpm - No greater than 0.15 meters per second
Method of drive rack & pinion
Motor output torque 108 Nm
Power supply 24 v DC (battery)
Maximum capacity 20 Stone / 280lbs / 127kg (350lbs/159kg available)
Track extruded aluminium
Mains supply 110v, 50Hz charger


The Acorn Stairlift is specified to meet, or exceed the requirements of:

  • BS 5776:1996 - British Standard - 'Specification for powered stairlifts'
  • CE Mark - Acorn Stairlift meets the requirements of the applicable European Directive(s).
  • UL compliant (Underwriters Laboratory Inc) for mechanical and electrical hazards - ASME A18.1 & A17.5
  • ISO 9386:2-2000 International standard for stairlifts

*NOTE: Acorn in keeping with it's policy of continual development, reserves the right to change specification without notice. All measurements are approximate. Acorn Stairlifts outdoor and heavy duty straight stairlift do not have current UL approval, but are internally tested to this standard.
